Shreenathji Steel deals in optimum quality Sheets and Plates, which are offered in various grades, thickness, length and weight. These are characterized by their increased durability, opposition to corrosion, flawless finish and absolute reliability in operation. These sheets and plates are procured from the renowned manufacturers in India.

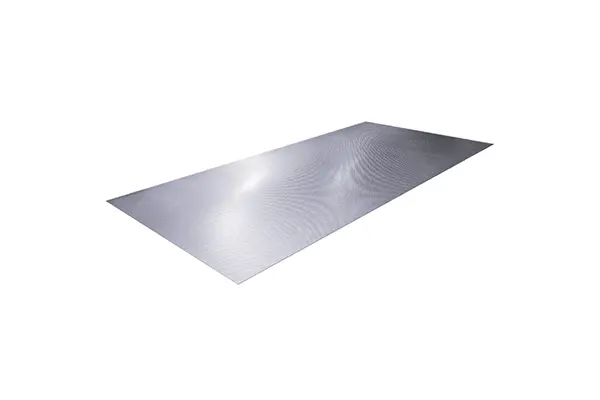

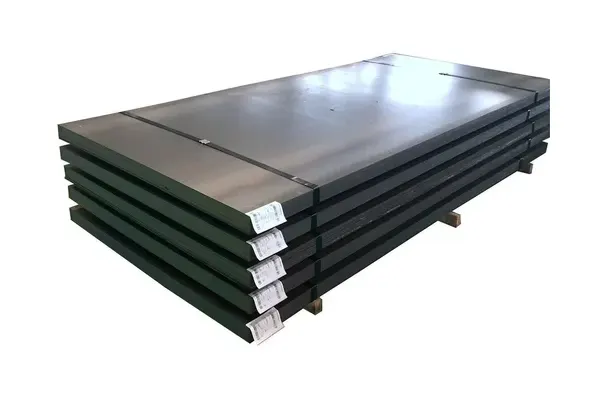

GP Sheets
Technical Specifications:
| Size | Guage | Thickness in MM | Wt Per Sq. Ft. | Wt Per Pc. in Kgs. |
|---|---|---|---|---|
| 6×3 | 10 | 3.15 | 2.313 | 41.634 |
| 8×3 | 10 | 3.15 | 2.313 | 55.512 |
| 8×4 | 10 | 3.15 | 2.313 | 74.016 |
| 6×3 | 12 | 2.5 | 1.834 | 33.012 |
| 8×3 | 12 | 2.5 | 1.834 | 44.016 |
| 8×4 | 12 | 2.5 | 1.834 | 58.688 |
| 6×3 | 14 | 2 | 1.453 | 26.154 |
| 8×3 | 14 | 2 | 1.453 | 34.812 |
| 8×4 | 14 | 2 | 1.453 | 46.496 |
| 6×3 | 16 | 1.6 | 1.157 | 20.826 |
| 8×3 | 16 | 1.6 | 1.157 | 27.768 |
| 8×4 | 16 | 1.6 | 1.157 | 37.024 |
| 6×3 | 18 | 1.25 | 0.916 | 16.488 |
| 8×3 | 18 | 1.25 | 0.916 | 21.984 |
| 8×4 | 18 | 1.25 | 0.916 | 29.312 |
| 6×3 | 20 | 1 | 0.725 | 13.05 |
| 8×3 | 20.0 | 1.0 | 0.7 | 17.4 |
| 8×4 | 20 | 1 | 0.725 | 23 |
| 6×3 | 22 | 0.8 | 0.578 | 10.404 |
| 8×3 | 22 | 0.8 | 0.578 | 13.872 |
| 8×4 | 22 | 0.8 | 0.578 | 18.496 |
| 6×3 | 24 | 0.63 | 0.459 | 8.262 |
| 8×3 | 24 | 0.63 | 0.459 | 11.016 |
| 8×4 | 24.0 | 0.6 | 0.5 | 14.7 |
| 6×3 | 26 | 0.5 | 0.363 | 6.534 |
| 8×3 | 26 | 0.5 | 0.363 | 8.712 |
| 8×4 | 26 | 0.5 | 0.363 | 11.616 |
